High Speed Double Turn plate Paper Cup Machine MYC-120

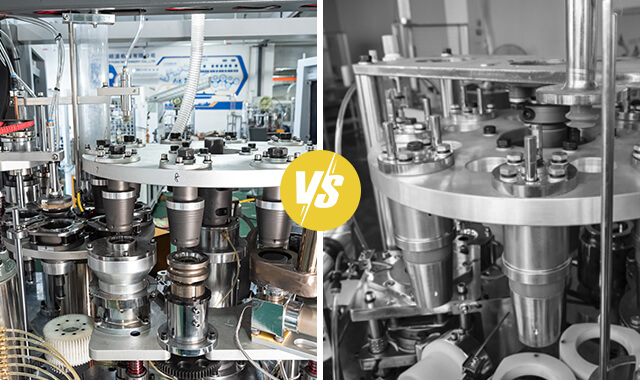

Top rim curling and bottom sealing inseparated turnplate which can greatly improve the machine stable;The whole mold head with 10pcs andadopt aluminum material compare with the single plate only 8pcsbakelite separable material ,the finished paper cup not easy be dirty

Send a quote

Max Speed

130-150 pcs/min

Paper Cup Size

4-16 0Z

Specifications

Model	High Speed Double Turn plate Paper Cup Machine MYC-120
Cup Side Welding	Ultrasonic heater
Paper cup Size	4-16 0Z (one size cup made by per set moulds, different size cup moulds exchange)
Rated Speed	130-150 pcs/min( Speed affected by cup size, paper quality & thickness)
Raw Material	Single PE/double side PE:PLA coated paper cups,aluminum foil paper
Suitable paper weight	140-300gsm
Power Source	50/60HZ,380V/220V(better use 380V,3 Phase )or special Power requirement.
Total Power	15KW(running consumption is 9KW)
Total Weight	GWINW:3500KGS13400KGS
Machine size(LWH)	2800x1540x2000mm(Collection Table 1000x650x1600mm)
Working AirSource	Air pressure:0.6kg/cm?Air Out-put:0.5m*/min Need to buy Air Compressor(by user)
Cup BottomHeating	1side PE paper by heater knurling: 2side PE paper by cool device(circlewater) knurling

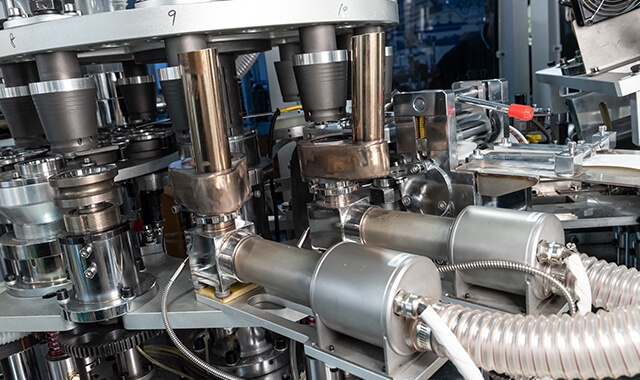

Hot Air Pre-heater	Paper fan pre-heater and bottom hot air sealing device(2PCS)

Customer Case

Country：Philippines

Requirement Size：390CC and 500CC

Country: Saudi Arabia

Solution：MYC-OCM100 Intelligent model paper cup machine

Requirement Size：Single Wall Paper Cup 8oz

View More Cases

FAQ of Paper Cup Machine

Q:1.How will the machine be repaired if there are faults, andwhat is the warranty?

Our engineer team will send the operation video to guide you tcsolve the problem .if the spare parts is broken in the warrantyperiod, we will send you the new replacement parts for frec.

Q:2.What is the raw materials for the paper cup machine ?

Raw materials : Single /double PE coated paper fan which isalready cut and printed , bottom paper roll

PS: Machine is without printing and cutting function(onlycan cut bottom roll paper, it can not cut the paper fan )

Q:3.One machine is with just one mould or several mould? Can we make difference size of the cup in one machine?

One machine is installed one full set mould for free. You canbuy extra half set mould (easy to change) or full set mould(difficult :1% success rate). We only recommend to change1-3 sets half set mould (with same bottom diameter size)in one machine.

Q:4.What else we need to start the production ?

Food grade or silicone oil and a small air compressor.

Q:5.How can I install the machine and get training servicesin my country?

The machine will be finished installation and tested runningperfectly before the delivery . You will get the completemachine which is finished installation. We will provide the fulloperation and training Videos to guide you to run the machineAnyone can install the machine and operate it easily.

Videos

Through this video, we will show you the paper cup manufacturing processand superior performance of MYC-120S. This machine can produce cupsranging from 4 to 16 ounces, meeting various size requirements.
