Understanding the Distinction Between Single Wall Paper Cup Machines and Double Wall Paper Cup Machines

Does the double wall paper cup machine produce both single wall paper cups and double wall paper cups? You might be puzzled between the single wall paper cup machine and the double wall paper cup machine. Well, this article will elucidate the disparities between these two machines.

1. What is the double wall paper cup machine & single wall paper cup machine ?

The single wall paper cup machine is exclusively designed for manufacturing single wall cups.

The double wall paper cup machine is specifically tailored for producing double wall paper cups, including both hollow and corrugated/ripple type varieties.

2. Design Discrepancies in Paper Fan Printing between Single Wall and Double Wall Paper Cup Machines

In the single wallpaper cup fan design, the top, sides, and bottom have blank areas allocated for top curing, ultrasonic sealing, and bottom knurling sealing.

On the contrary, the double wall paper sleeve fan design features only a 5-6mm blank space on the paper fan side, specifically designated for ultrasonic sealing.

3. The raw materials for double wall paper cup machine is with bottom roll or not ?

In the operation of a double wall paper cup machine, the raw materials typically do not include bottom roll paper. This is because the machine focuses on producing the sleeve wall and affixing it to single wall cups.

Conversely, for single wall paper cup machines, both paper fan and bottom roll paper are essential components in the production process to create single wall cups.

4. The double wall paper cup machine is with bottom cutter unit or not ?

There is no bottom cutter in double wall paper cup machine,but the bottom cutter is important for single wal paper cup machine to cuter the botom.

5. The double wall paper cup machine is with bottom heaters or not ?

The double wall paper cup machine is ony with bottom knuring unit tomake the hollow type double wa paper cups . While the single walpaper cupmachine is with bottom heater for heating and sealing the cup bottom without leakage.

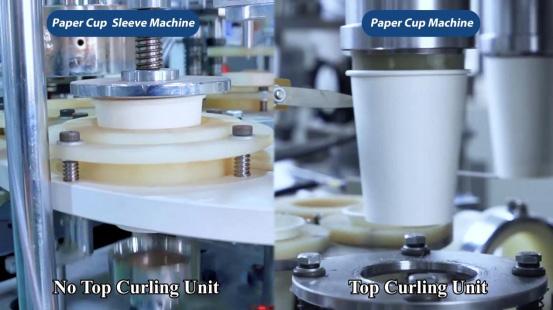

6. Is double wall papercup machine with Top curling unit or not?

The double wall paper cup machine is without top curing unit , but the single wall paper cup machine is with it to make the rim to ft the id for cofee tea cup and ice cream cup.

7. The difference in fnished cups products and the full workina process to make the double wa oaoer cups

The process of manufacturing double wall paper cups involves utilizing a specialized machine to affix an outer sleeve onto single wall cups. This results in the creation of double wall paper cups, which offer enhanced insulation properties. Conversely, single wall paper cup machines are designed to produce single wall paper cups without the additional sleeve layer. To produce double wall paper cups, it's necessary to procure both a single wall paper cup machine for manufacturing the base cups and a double wall paper cup machine for adding the outer sleeve. Alternatively, one can opt to purchase pre-made single wall paper cups from the local market and solely invest in a double wall paper cup machine for final assembly.
